Vacuum Excavator VM2000-3000

Our VM2000 and VM3000 Vacuum Excavators feature the productive know-how that comes from over 20 years of supplying contractors and municipalities with durable, reliable trenchless technology equipment.

  • Self contained skid, trailer or truck mounting
  •  34.9 Hp Kohler Diesel
  • 3” hose all round and 550 CFM blower
  • 2000L or 3000L Litre Spoil Tank
  • 850 cfm blower / vacuum pump providing 15″ Hg of vacuum
  • 3500psi High Pressure Triplex Water Pump
Download Brochure
POWER PACK ENCLOSURE
  • Diesel Engine
  • Powerful Roots Blower
  • Fully Enclosed Blower Pack
  • Protection from the Elements
  • Quiet blower pack for working in urban areas
FILTRATION WITH CLEANOUT
  • Three Stage Filtration System
  • With Cyclone Separation
  • Washable 5 micron filter element
  • Ease of service
WATER SYSTEM
  • Water pump uses electric clutch feature
  • Pump can be disengaged when water is not in use, allowing full horsepower to the vacuum system.
  • Reduces wear on water pump
  • Set at 3500psi for safe working around existing services.
TANK DUMP SYSTEM
  • Hydraulic cylinder tank lift
  • Able to work on cylinders with tank down
  • Remote tank lift control
  • Ease of Operation
  • Manual door lock

What type of work can you do with a Vacuum Excavator VM2000-3000?

  • Underground Service Locating
  • UEnvironmental cleanup. Everything from flooded basements to oil spoils.
  • Clean up construction sites
  • Install fence posts
  • Live gas pipe maintenance
  • Live sewer pipe maintenance
  • Drilling fluid and mud cleanup.
  • and much more

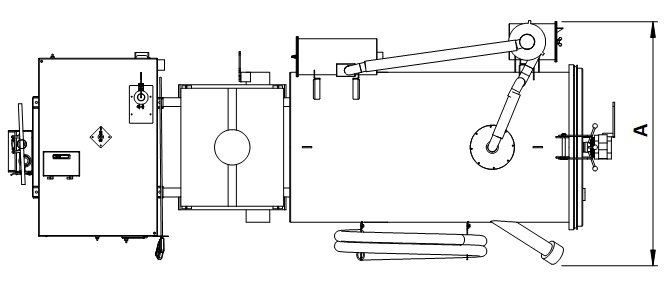

Dimensional Diagram

VM2000-VM3000 Dimensions
A
B
C
Dry Weight ( Kg )
VM3000
2080mm
4930mm
1725mm
3100 Kg
VM2000
2080mm
4240mm
1725mm
2800 Kg
VM2000 / 3000 Vacuum Excavator
Vacuum System
3” hose all round and 550 CFM blower
Petrol Engine
34.9 Hp Kohler KDW1404
Spoil Storage Tank
2000L or 3000L Capacity with remote hydraulic tipping
High Pressure Water System
3500psi @ 15 Lpm
Water Tank
800 Litres
Retractable Hose Reel
15 m
Optional Extras
Manual Boom Option
With hydraulic up down movement
Double Jet Digging Wand
6.5 inch / 165 mm hole
Hose Extension
10 m
